Core Pins & Ejector Pins

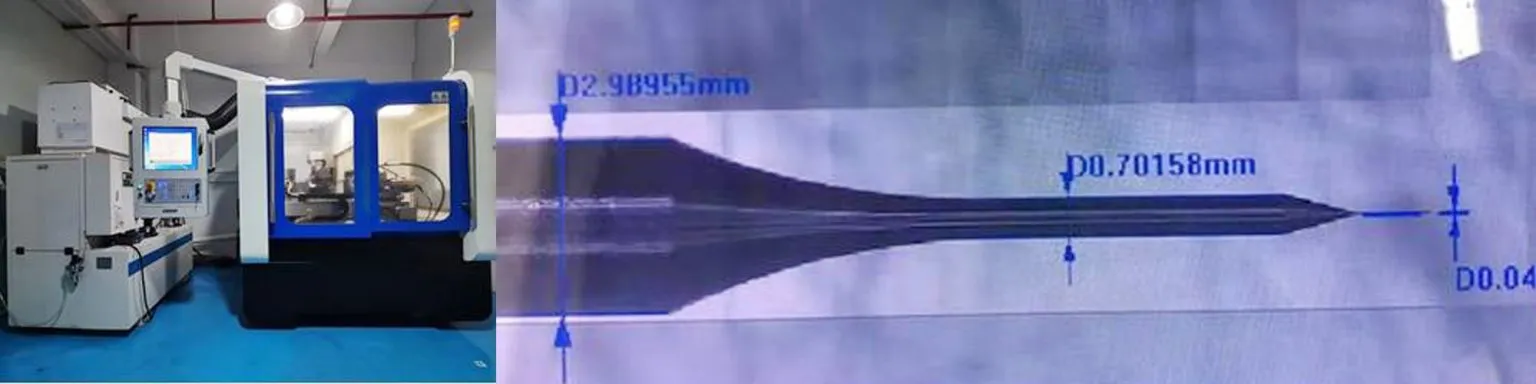

Our core pins and ejector pins are manufactured to the highest standards for plastic injection molding applications. With precision grinding and polishing, we achieve the surface quality and dimensional accuracy that mold makers demand.

Product Range

• Core Pins: Standard and custom profiles for mold cavity forming
• Ejector Pins: Through-hardened pins in various diameters and lengths
• Ejector Sleeves: Thin-wall and standard sleeves for complex ejection requirements
• Conical Ejector Pins: Tapered designs for specialized mold configurations

Specifications

• Materials: Tool steel (1.2343, 1.2516, HSS), powder metallurgy steels (CPM10V, ASP23, ASP30), and carbide
• Diameter Range: From 0.57mm micro pins to large-diameter sleeves up to 40mm+
• Length Capability: Standard lengths to 630mm, custom lengths available
• Surface Finish: Fine grinding and polishing to Ra0.4 or better

Quality Standards

All pins are inspected for straightness, diameter tolerance, surface finish, and hardness. We supply to mold makers serving automotive, electronics, medical device, and consumer products industries.
